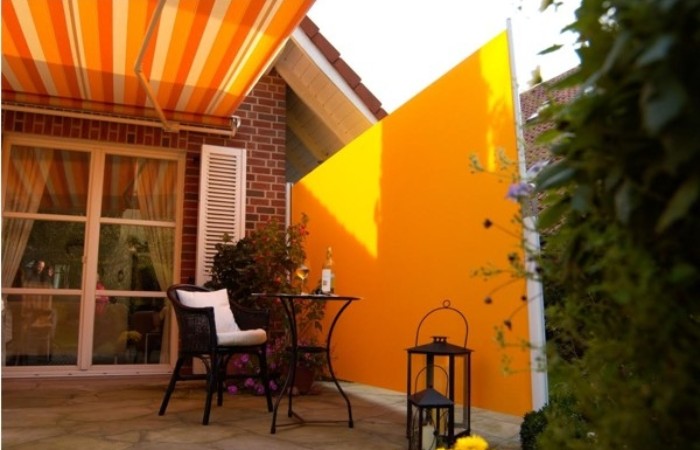

Markilux 790 - Manual Operated Wind Protection Side Screen

Face Fixing Installation - Other fitting positions are available.

Technical Specification

• Product Type: Retractable side screen / windbreak (vertical pull-out awning).
• Operation: Manual operation via a handle with an integrated spring-loaded tensioning system.
• Cassette Housing: Compact aluminium full cassette to protect the fabric roll (vertical mounting).

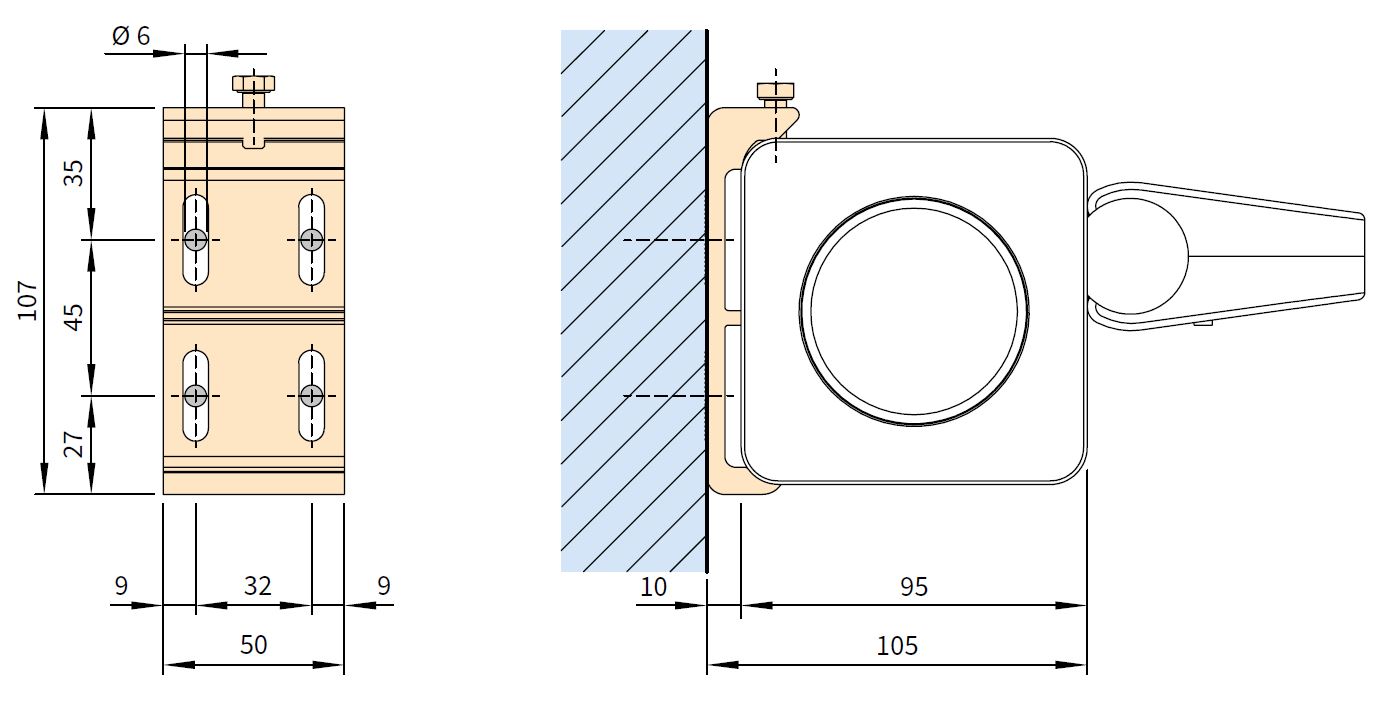

• Cassette Dimensions: Approx. 95mm depth x 135mm width (oval profile).
• Available Heights:
  • 1730mm
  • 2130mm
  • 2500mm
• Maximum Extension:
  • Up to 4500mm (Standard fabric with seams)
  • Up to 4500mm (Seamless fabric - Transolair / Sunsilk) *Subject to height restrictions
  • Note: Maximum width is generally 450cm at 173cm/213cm height, reducing to 350cm at 250cm height.
• Fabric Choices:
  • visutex: Exclusive textured fabrics.
  • sunvas / sunsilk: High-performance polyester/acrylic.
  • transolair: Perforated fabric for visibility and airflow.
• Standard Frame Colours:
  • Traffic White (RAL 9016)
  • Metallic Aluminium (RAL 9006)
  • Grey Brown (similar to RAL 8019)
  • Anthracite Metallic (5204)
  • Stone Grey Metallic (5215)
  • Off-White Textured (5233)
  • Havana Brown Textured (5229)
• Fixing Methods:
  • Cassette: Wall brackets (standard) or stand-off brackets.
  • Docking Point: Wall bracket, floor-mounted docking post, or ground socket option.
• Sloping Top Edge: Available as a special "angled" version to match the pitch of an overhead awning (contact us for details).

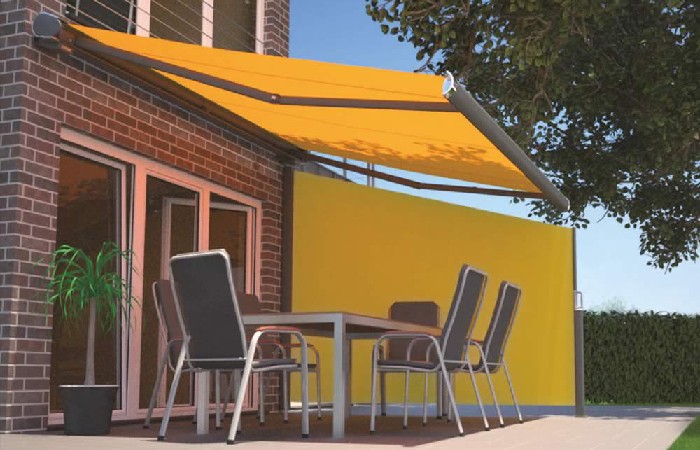

If the side awning is to be fixed between two walls, there is also a wall connection profile in which the handle is hooked. The Markilux mobifix can also be used for increased flexibility - a fixture post mounted on a mobile granite footplate.

The Markilux 790 Side Screen is designed for straightforward, hassle-free installation. As a manually operated system with no electrical connections, it is an ideal project for a competent DIYer, typically taking less than an hour to fit.

Installation Level: Easy / Beginner DIY
Recommended Team: 1-2 People

Installation Overview

The system consists of two main elements: the Cassette (which holds the fabric) and the Docking Point (where the handle hooks on).

1. Fixing the Cassette: The vertical cassette is secured to your wall using two simple wall brackets.
   • Measure and mark the bracket positions vertically.
   • Drill and secure the brackets to the wall using suitable masonry fixings.
   • Lift the lightweight cassette onto the brackets and secure it in place with the locking screws (allen key provided).
2. Fixing the Docking Point: Depending on your setup, you will install one of the following:
   • Wall Bracket: A small hook bracket screwed directly to an opposing wall or wooden fence post.
   • Docking Post: A vertical post bolted to your patio or decking floor. (Requires a solid surface like concrete or substantial timber decking).
3. Operation: Once both ends are fixed, simply pull the handle to extend the screen and hook it onto your docking point.

Tools Required

• Hammer Drill & Masonry Bits
• Tape Measure & Pencil
• Spirit Level (Vertical)
• Screwdriver / Socket Set
• Wall Plugs & Screws (appropriate for your specific wall type - brick, stone, or wood)

Note: A complete, illustrated installation manual is supplied with every order. If you encounter any difficulties, our technical support team is just a phone call away.

Markilux awnings carry a comprehensive 2 year manufacturers warranty for use in domestic applications and a 5 year warranty on the electric motor drive unit. Exact details on the warranty details and conditions are available on request…

How to Measure for Your Side Screen

Measuring for a Markilux 790 Side Screen is straightforward. To ensure you select the correct options in our shop, please note that we define the dimensions as follows:

1. Width (Cassette Height)

In our online shop, the "Width" refers to the vertical height of the cassette housing.

• 1730mm (approx 5ft 8in): Ideal for seated privacy; allows most people to stand and look over the top.
• 2130mm (approx 7ft): The standard choice for full standing privacy and effective wind protection.
• 2500mm (approx 8ft 2in): Maximum height for complete coverage, often used in commercial settings.

Check: Ensure you have sufficient clear vertical wall space (free from lights, vents, or soffits) to accommodate the cassette height you select.

2. Projection (Extension Length)

The "Projection" refers to how far the screen will pull out from the wall.

• Flexible Use: You do NOT need to fully extend the screen to its maximum projection for it to work. The internal spring maintains tension at any distance.
• The Rule: Always order a Projection equal to or greater than the gap you need to fill.
  Example: If the gap between your house wall and your fence post is 3700mm, you should select the 4000mm Projection option. You will simply pull the screen out 3.7m and hook it on, leaving the spare fabric safely on the roll.
• Maximum Limit: Never try to stretch the screen beyond its specified maximum projection.

3. Checking Your Fixing Points

• Cassette Side: Ensure you have a flat vertical surface (at least 100mm wide) to mount the cassette brackets securely.
• Docking Side:
  • If using a Wall Bracket: Check the opposing wall is solid.
  • If using a Docking Post: Ensure your ground surface (patio slab or concrete) is solid enough to bolt into.

Can I install the Markilux 790 on an uneven surface or sloping patio?

While the cassette must be mounted vertically on a flat wall, the screen is forgiving of slight ground unevenness. However, the fabric pulls out horizontally, so it will not follow the slope of the ground.
Tip: If your patio slopes away from the house significantly, you might find a gap appears under the fabric at the far end. For commercial terraces with distinctive slopes, we can offer a "sloping top edge" version (shaped cut) on special request to match the gradient or roof pitch.


Is the side screen suitable for use as a windbreak in exposed locations?

Yes, the Markilux 790 is excellent for blocking cooling breezes and creating a sheltered "micro-climate" on your patio or restaurant terrace. The spring-loaded mechanism keeps the fabric taut to prevent excessive flapping.
Important: It is designed for breezes and light winds. In strong gale-force winds or storms, the screen should always be retracted to prevent damage to the mechanism or fixings.


Can I attach the extended screen to something other than a wall?

Absolutely. While a wall bracket is the standard fixing for the handle end, you don't need an opposing wall.
For Homes: You can use a Docking Post bolted to your patio floor, allowing you to create a partition anywhere.
For Businesses: You can use a Ground Sleeve socket, which allows the docking post to be removed completely when not in use—perfect for clearing the terrace for events or cleaning.
