Markilux 1300 - Manual Operated Open Cassette Awning

Face Fixing Installation - Other fitting positions are available.

Technical Specifications

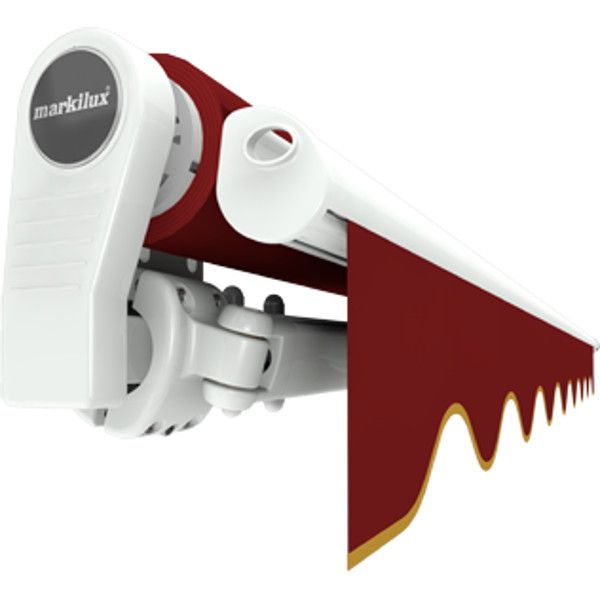

Construction & Stability

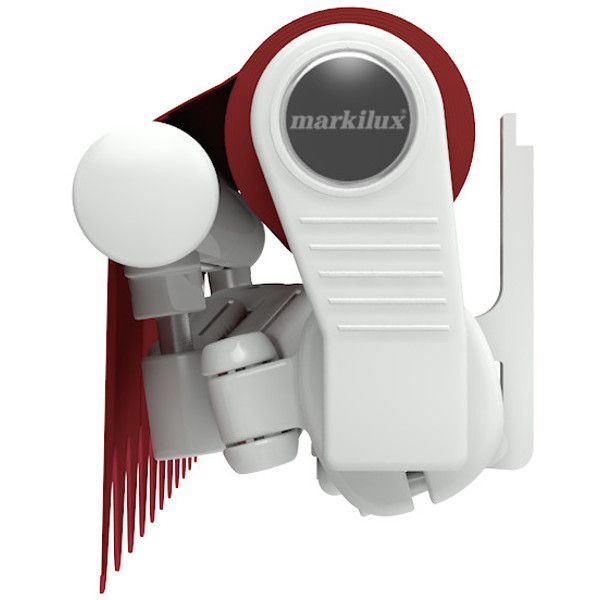

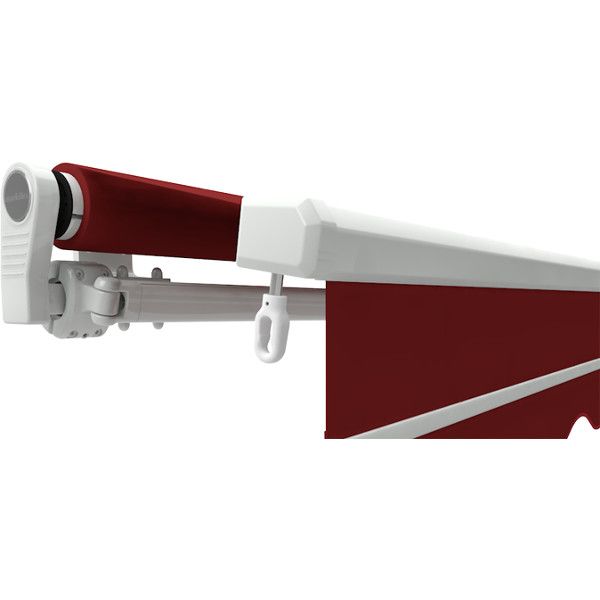

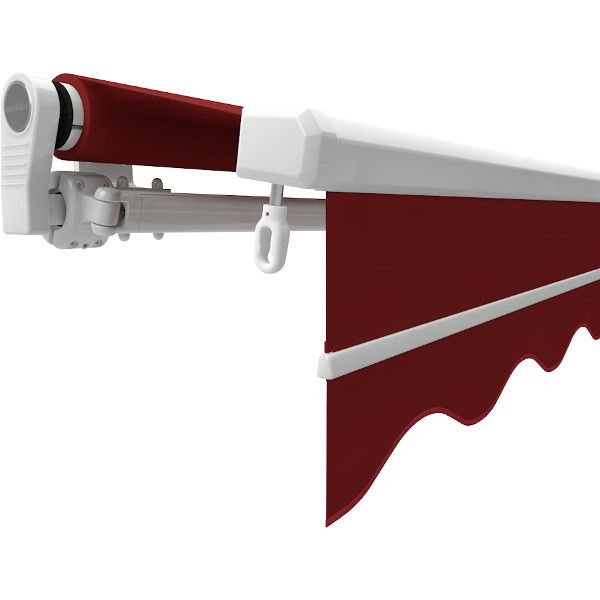

Arm Technology

The folding arms are engineered for longevity and high tension:

• Joints: Moving parts are made of drop-forged aluminium, making them extremely fracture-resistant and superior to standard die-cast components.
• Power Transmission: Twin round steel-link chains provide the extension force. These are corrosion-protected and operate smoothly to keep the fabric taut.
• Pivot Bolts: Stainless steel pivot bolts run in Teflon-coated bushes. This self-lubricating design ensures quiet operation and practically eliminates wear, a feature rarely found on competitor awnings.

Dimensions

• Maximum Width (Single Unit): 7000 mm
• Maximum Projection: 4000 mm
• System Height/Depth: Approx. 232mm height x 212mm depth (when retracted/wall mounted).

Pitch Adjustment

Standard manual adjustment allows the installer to set the pitch during fitting.

• Standard Pitch Range: Adjustable during installation between approx. 4° and 54°.
• Optional "Pitch Adjustment Gear": A unique upgrade (available for units with 2 arms up to 3000mm projection) that allows the user to change the angle effortlessly via a winding handle. Two range options available:
  • 4° to 54°
  • 35° to 85° (ideal for steep shading requirements)

Operation

• Manual (Standard): High-quality servo-assisted winding handle mechanism.
• Electric (Optional): Hard-wired or radio-controlled motors (Somfy RTS/io) available.

Markilux awnings are engineered in Germany to the highest standards of durability and performance. As a result, this product is supplied with the backing of a comprehensive manufacturer’s guarantee, protecting your investment against manufacturing defects and component failure.

What is Covered?

Subject to proper installation and normal use, the Markilux 5-Year Manufacturer’s Guarantee typically covers the primary system components, including:

• Framework: The structural profiles, cassette (where applicable), torsion bar, and castings.
• Mechanism: The folding arms, stainless steel pivot bolts, and power transmission systems (steel-link chains or bionic tendon).
• Fabrics: Markilux technical fabrics are guaranteed for 5 years against rot, mildew, and abnormal loss of function (subject to standard environmental conditions).
• Motors: Electric motors (e.g., Somfy) are covered by their respective manufacturer warranties, usually matching the 5-year term.

Conditions of Warranty

To ensure the validity of the guarantee, the following conditions apply:

• Installation: The product must be installed strictly in accordance with the manufacturer's instructions and using appropriate fixings for the structure. Damage resulting from incorrect installation is not covered.
• Usage: The awning is designed primarily for sun protection. Damage caused by environmental factors such as high winds, storms, heavy snow loads, or leaving the awning extended in unsuitable weather is excluded from the warranty.
• Electrical: All hard-wired electrical connections must be performed by a qualified electrician in line with current regulations.

Support Procedure

Your warranty contract is held with the retailer from whom you purchased the awning.

• Reporting a Fault: In the unlikely event of a manufacturing issue, please contact us with your original order details and a description of the problem (photos are often helpful).
• Resolution: We will liaise with the manufacturer’s technical team to assess the claim and authorise the appropriate remedy, which may include the supply of replacement parts or technical support to resolve the issue.

Note: This warranty is in addition to your statutory rights. Full terms and conditions are available upon request.

How to Measure for the Markilux 1300 Awning

The Markilux 1300 is a classic "open" style folding arm awning built on a robust square steel torsion bar system. This design is robust and offers excellent installation flexibility, making it a favourite where wall structures are tricky or obstacles exist.

1. The Ordering Width & Torsion Bar Advantage

Ordering Width: This is the total overall width of the awning frame, from one end of the round tube/bar to the other.

• Flexible Brackets: Unlike end-fix cassette awnings, the brackets on the 1300 can slide along the square back bar. This means you do not need a fixing point exactly at the far ends. You can move the brackets inwards (within allowed zones) to find solid brickwork and avoid mortar joints.
• Fabric Width: As with all folding arm awnings, the fabric is narrower than the overall width (approx. 140-150mm less) to accommodate the mechanisms.

2. Projection and Coverage

The projection is the distance the awning extends from the wall (e.g., 2500mm, 3000mm, 3500mm).

• Angle Effect: Remember that when the awning is pitched downwards for rain run-off, the horizontal distance covered on the ground is slightly less than the arm length.
• Maximise Shade: Customers rarely regret going "too big." If space permits, choose a projection that covers your furniture with room to spare.

3. Mounting Height and Pitch

The Markilux 1300 has a very adjustable pitch range (typically 4° to 54°), giving you great control over the angle.

• Rain Protection: For water to run off safely, you should set the pitch to at least 14 degrees.
• Mounting Height Rule: To achieve a 14° pitch while keeping 2000mm headroom at the front, mount the awning at approx 2700mm - 2900mm from the ground (depending on projection).
• Variable Pitch Gear (Optional): The 1300 can be fitted with a "Pitch Adjustment Gear," allowing you to change the angle yourself with a winding handle—perfect for tracking the low sun in the evening.

4. Dealing with Obstacles

The 1300 is one of the easiest awnings to fit on difficult walls.

• Downpipes: Because the brackets can move, you can often position them to one side of a pipe. If the pipe is directly in the way of the arm shoulder (where support is needed), use Stand-Off Brackets to space the whole awning forward.
• Roof Rafters: The torsion bar system is ideal for mounting onto roof rafters (using specialist rafter brackets) if you don't have enough height on the wall.
• Spreader Plates: If fixing into single-skin brickwork or a weak substrate, spreader plates can still be used to distribute the load safely.

5. Practical Measuring Tips

• Test the Shadow: Use a long pole or tape measure to simulate the front profile position. Hold it at approx 2m high and 3m out (or your chosen projection) to see exactly where the shade will fall.
• Orientation: If you face West, the low evening sun might shine under the canopy. Consider a larger projection or the optional Shadeplus (drop valance) to block this glare.

Need Help?

If you have a complex wall, odd spacing, or are unsure about bracket positions, send us a photo and your dimensions. The Markilux 1300 is highly adaptable, and we can usually find a bracket solution to make it work safely for your home.
