Rialto Quad Round (6 Panel) 4000mm

Side Arm Umbrella



Related Pages

Phone Our Team Of Experts To Discuss Your Requirements

CALL US NOW ON 01933 449 000



The May Rialto Side Arm Umbrellas can be personalised to meet your requirements;

> Available with or without a valance.

> Range of parasols to choose from: single, double, triple or quad.

> Installation options allow to umbrella to be mobile or stationary.

> Choice of fabric colours.

> Comes as standard with a protective sleeve.

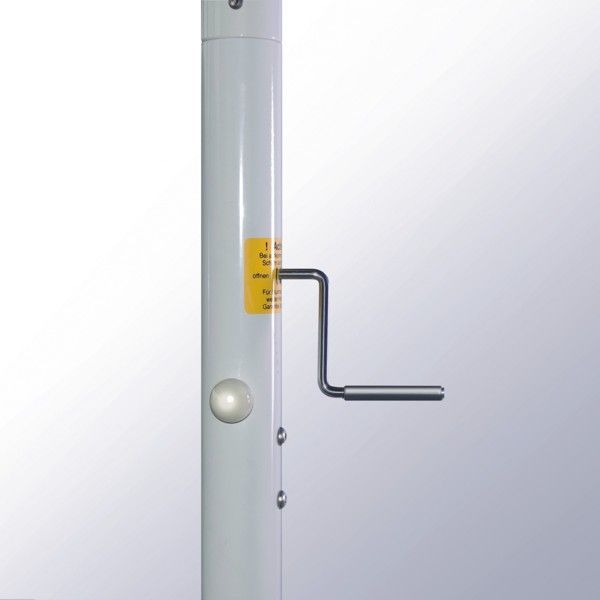

> Complete with a removable stainless steel crank.

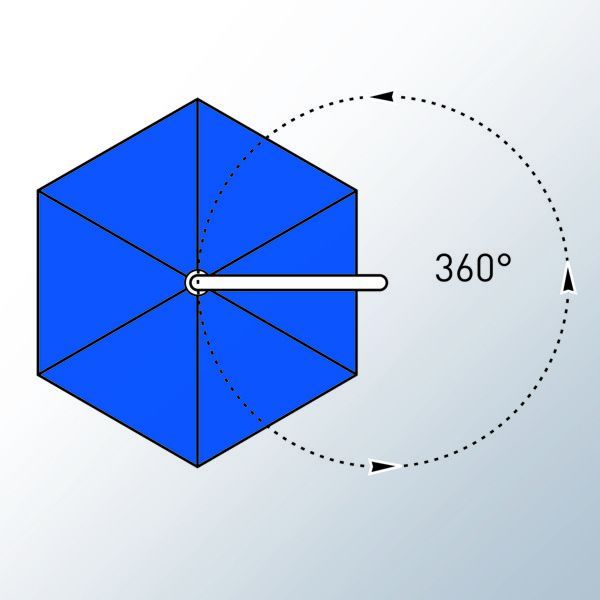

> 360° rotation allows the parasol to be rotated to follow the path of the sun.

> Canopy Frame Colour White RAL 9010.




Domestic Use.

The Rialto is crank drive operated so the position of the parasol can be adjusted to suit the height of your choice.

Installation Options:

Mobile Installation Options

Full Frame Pedestal - frame size 103 x 103cm, total height 29cm, weight approx 27kg, galvanised. For 2 sets of standard concrete slabs 50 x 50 x 5 cm.

Full Frame Pedestal (on wheels) *Note: Not suitable for windy conditions!* - with rubber heavy duty rollers and fixing brakes, frame size 103 x 103cm, total height 36cm, diameter of rollers 5cm, weight approx 28kg, galvanised. For 2 sets of standard concrete slabs 50 x 50 x 5cm.

Stationary Installation Options

Anchor tube (to be embedded into concrete) - 2 pieces, screw off upper part, galvanised, weight approx 4.7kg, incl top plate for winter protection.
Umbrellas with more than 2 canopies the upper part unscrews.

Wall Bracket - galvanised, weight approx 5.5kg, wall plate 30 x 16cm. Bottom of support pole rests on bottom end of anchor tube *Please Note: only to be fitted with heavy-duty dowels, only on concrete wall or with through bolts and wall pressure plate*

Further Installation options are available.

Installation Instructions provided with every umbrella.


A 24 months warranty is granted on the umbrella, including all operational parts.
Warranty does not cover damage from improper use, strong winds or rust film on spoke joints.
