Weinor Cassita II - Retractable Full Cassette Awning


The Weinor Cassitta II retractable awning is another superb compact full cassette awning manufactured by a leading German company, with years of experience in high quality weather protection systems. The Cassita is a RedDot 2014 awards winner product and offers the very latest technology within a compact, oval shaped, aluminum cassette housing. It is perfect for contemporary designer homes, but also looks great on many other house types, especially as it is available in over 50 standard colours and over 150 fabrics. Made to measure as standard this awning will suit many properties where the maximum width required is 5.5m or less. We are offering this awning as a manual or electric operated version with various fixing brackets offered within the options list. The choice is yours.

Related Pages

Phone Our Team Of Experts To Discuss Your Requirements

CALL US NOW ON 01933 449 000


With drop forged aluminium jointed arms and high tension, super quiet and durable belt connections in the supporting arms you can rest assured of an awning which will last many years to come.
The high tech belt system used in every Cassita awning arm for tension on the fabric cover has been tested to over 100,000 cycles and is backed up with a 10 year guarantee.
The Cassita is a classic 'end fix' awning with 2 fixing points on any size up to 5500mm wide and means you know exactly where the brackets and support is required for your awning - Either end of the chosen awning width....

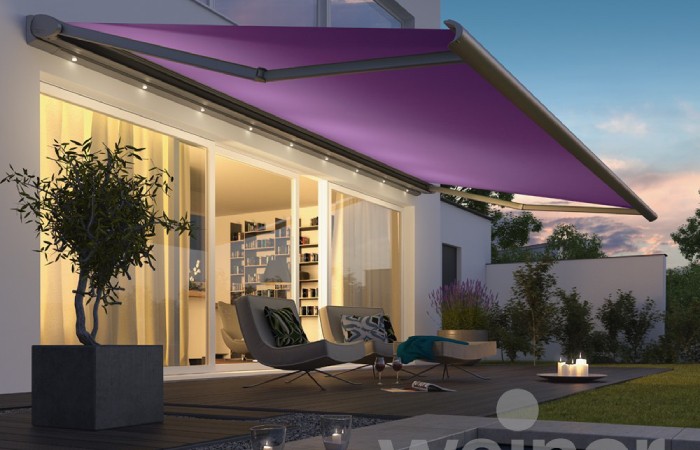

Enjoy pleasant evenings on your patio or terrace with high quality sun shade and protection but also look towards the evenings with the LED version of the Cassita, incorporating warm white atmospheric LED lighting directly underneath the awning cassette and controlled via the remote handset for the awning control.

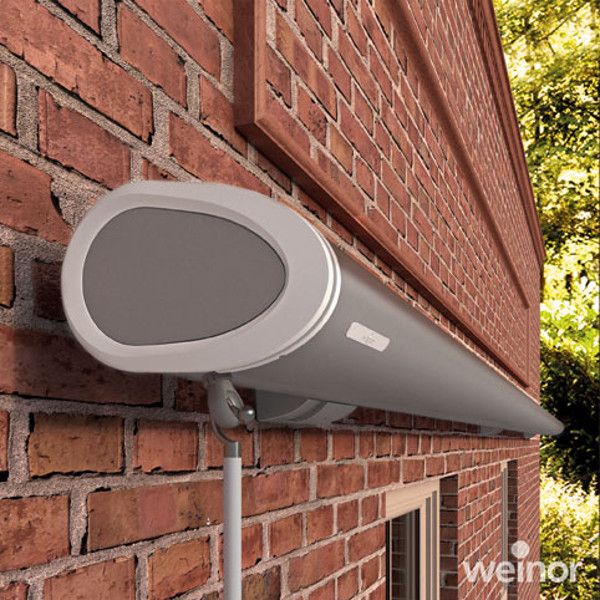

The Cassita has a 120mm deep flat oval aluminium full cassette to protect the awning fabric all year round. The fabric and frame are well protected from the wind and rain inside the cassette and the total depth is only 266mm with the fixing brackets and cassette. Choose from over 50 cassette and frame colours for your new Weinor awning. 47 standard colours and 9 trend colours with a tougher textured surface finish at no extra cost..
BiConnect radio controls are used to operate the awning as well as LED lights, optional heating system or the superb valance plus.

The Weinor Cassita II retractable awning has a contemporary oval shape aluminium full cassette enclosure. It is purpose made in sizes up to 5.5m wide and optional integrated lighting is available built into the awning cassette (Weinor Cassita II LED).

* Totally made to measure, designed and manufactured in Germany
* Winner of 3 design awards: iF, RedDot and Focus Open
* Rated for wind speeds up to 20mph (Beaufort 5) with optional wind or motion sensor to automatically retract in higher wind speeds or when the awning is moving around too much
* Water resistant, dirt proof, non-fading high quality fabrics with UPF 50+ sun protection
* Over 50 different frame colours as standard with optional any RAL colour at extra cost
* Choice of manual, electric or remote operation with various controls and smartphone apps (Somfy systems)
* Optional integrated LED lighting built into cassette housing - Cassita II LED model
* Extended 5 year product and workmanship guarantee available
* 2 bracket fixtures to vertical wall structure with optional brackets to accomodate single storey structures and weaker areas for fixing. If there doesn't look to be a sutiable brackte solution for your building then please email or call us for advice and options.

The Weinor Cassita II is a compact full cassette awning ideal for small to medium sized patios, gardens and terraces, available up to 5500mm wide and a maximum of 3000mm projection in manual or electric operation and a wide range of controls to suit the environment and application.

Face Fixing Installation - Other fitting positions are available.

Weinor cassita II retractable awning housing dimensions

* The Awning can be tilted manually to any angle between 5 and 45 degrees to allow for how high up the awning is fitted and the angle of the sun.
* The Cassita Awning provides optimum protection from the wind and weather: when retracted the fabric and awning arms disappear completely. The front rail closes, making it inconspicuous.
* Streamlined, ultra thin cassette with beautifully shaped aluminium caps, concealed screws and requires just two wall attachments.
* Gutter is built into the front section with controlled drainage.

The Weinor Cassitta is available in a choice of 47 frame colours.

Technical Features
Slender LongLife Arm – tested to more than 100,000 cycles of operation
Extremely quiet operation. No maintenance required on mechanism, just cleaning regularly
Drop-forged aluminium in joints for arms – light but highly robust.

Installation Instructions provided with every awning.

2-year guarantee with extendable 5 year warranty

Measuring for an Awning..

When measuring for an awning, the width, projection from the wall, height of the awning from the ground, the pitch of the canopy cover and the lowest height for the front profile when fully extended, are all the dimensions you should consider.

A ‘standard’ size and currently the most common size in the UK is a 4000mm wide awning with a 3000mm projection. On a standard house wall this awning could be installed at around 2800mm high from the ground, with a pitch of around 15 degrees on the canopy, so when fully extended the front of the awning would be at around 2000mm from the ground. The 3000mm projection would be less now, because of the angle of the canopy.
To guarantee a good rainwater run off from the fabric canopy a typical self supporting awning should be set at a minimum pitch of 14 degrees, but preferably greater than this if possible.
You can install and set a lot of retractable awnings to be at zero degrees of pitch, but then these should bever be used in the rain..At less than 14 degrees you should never leave the awning unattended when open and manage accordingly with rainfall.

Each awning brand and model will have a different and specific standard bracket position, so when measuring for an awning, please be aware of certain awning models which have fixed bracket positions.Many have brackets which can be repositioned but mostly the brackets tend to sit where the awning arms meet the cassette and mechanism.
Please check the specific model of awning and the fixing positions and be aware of limitations if you maybe have on the structure you are fixing to.

Dimensions and their Meaning
The ‘Ordering Width’ measurement refers to the overall width of the awning cassette or end to end dimension of any mechanism, when it isn’t a full cassette awning model. The fabric cover will ALWAYS be narrower than the awning width simply because of the physics, please check for exact fabric canopy width if this is important to you.
The ‘Projection’ is the length from the back of the awning brackets to the front of the leading profile and is when the adjustments in the arms are fully extended. Most awnings will be offered with the projections in 500mm increments, whilst the width is an exact millimetre dimension and most of our awnings are made to measure as standard.

Installation Considerations
When you are measuring for an awning and you have obstacles such as downpipes or maybe brickwork features so the wall isn’t totally flat you can choose to ignore these and focus on the width you need for the greatest shading. All the awnings have their standard fixing brackets but you can always order ‘stand off’ or ‘pipe’ brackets which enable the awning to be fitted away from the wall and in front of any obstacles. You might also discover unsuitable sub structure for fitting, such as single skin brickwork or maybe the awning position sits right over a lintel? In this case you can also spread the loading of the awning down, up or across your wall using spreader brackets.
Please email or call us with details of your obstacles and issues and some dimensions and we can advise if it isn't obvious from options given already.

Some Basic Advice
We have never known anyone to complain about any awning being too large, but a few people have wished they ordered something slightly bigger once they realise they had plenty more room and needed more shade and cover with the awning.
You create outdoor protected space with an awning for relaxing, entertaining and dining so covering your tables and chairs with enough overhang at the sides and front to deal with the moving sun is essential. The direction your patio, terrace or garden faces is also a huge factor to the awning size. Maybe take a long stick and at various times of the day hold it out from your building wall to show exactly where the shadow sits and this will show you what the awning will also do.. Of course have the stick or rod at the length you think your awning should be and also hold it at about 2m, but angling up to the height where the awning position will be - usually somewhere between 2.5 and 3m in most cases. You might be surprised how little shade you get at certain times of the day, but whatever your reasons are for an awning you will find other benefits other than just sunshade.

We offer many awning models with manual or electric drop down front valances and these are perfect to protect from low lying sun (West facing gardens) and also provide privacy and protection from cooling breezes. Many have a maximum extension of 2.1m to give total cover from ground to awning font profile…
